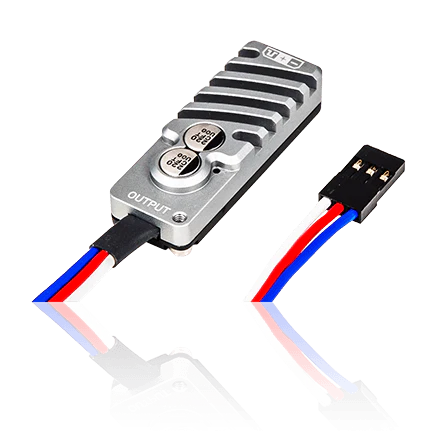

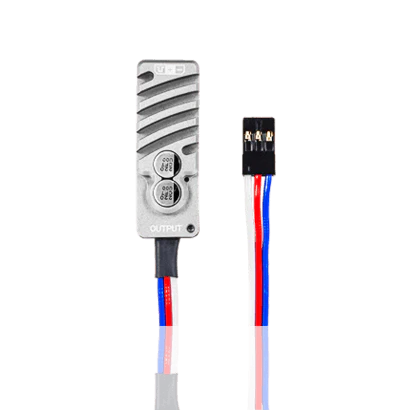

V-REGULATOR

The V-Regulator is a compact, high-performance voltage regulator which is ideal for any model where standard servos are to be operated in conjunction with a Lithium battery.

Features

Available with 5.3V or 6.0V regulated output
Constant current up to 3A - according to the cooling
Peak current up to 20A (< 10s)
Large scale milled aluminum heatsink
Fits best for ignitions, small helicopters, and smaller fixed-wing models with up to 8 servos
For all applications with a maximum input voltage of 5.3V or 6.0V
Super slim dimensions for small fuselages

Technical Data

Operating voltage	4.0V - 9.0V
Maximum load current	Constant max. 3A, Peak max. 20A
Drop-out voltage	0.10V
Output voltage	5.3V / 6.0V
Servo sockets	1
Weight	10g
Temperature range	-30°C to +85°C

Product description

The V-Regulator is a compact, high-performance voltage regulator which is ideal for any model where standard servos are to be operated in conjunction with a Lithium battery. In this way, fairly small to medium-sized fixed-wing model aircraft and helicopters can be equipped, or re-equipped, with modern battery technology.

The signal wire is looped through from the input to the output, which means that even a single 6V servo can be operated in a model fitted with a high-voltage system.

A further application is for those electronic ignition systems whose maximum power supply voltage is limited. The regulated output voltage ensures that servos give a constant performance.
The unit effectively filters out servo feedback currents.

Downloads

Quickstart Guide

VRegulator (PDF)

show more language versions

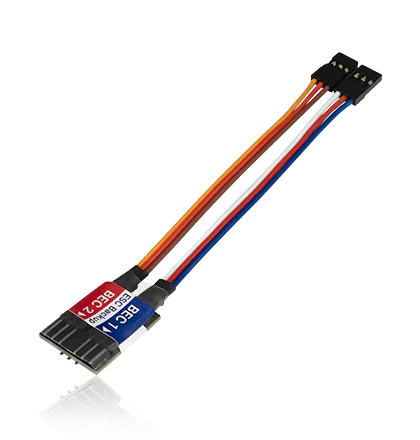

Power Box BEC
