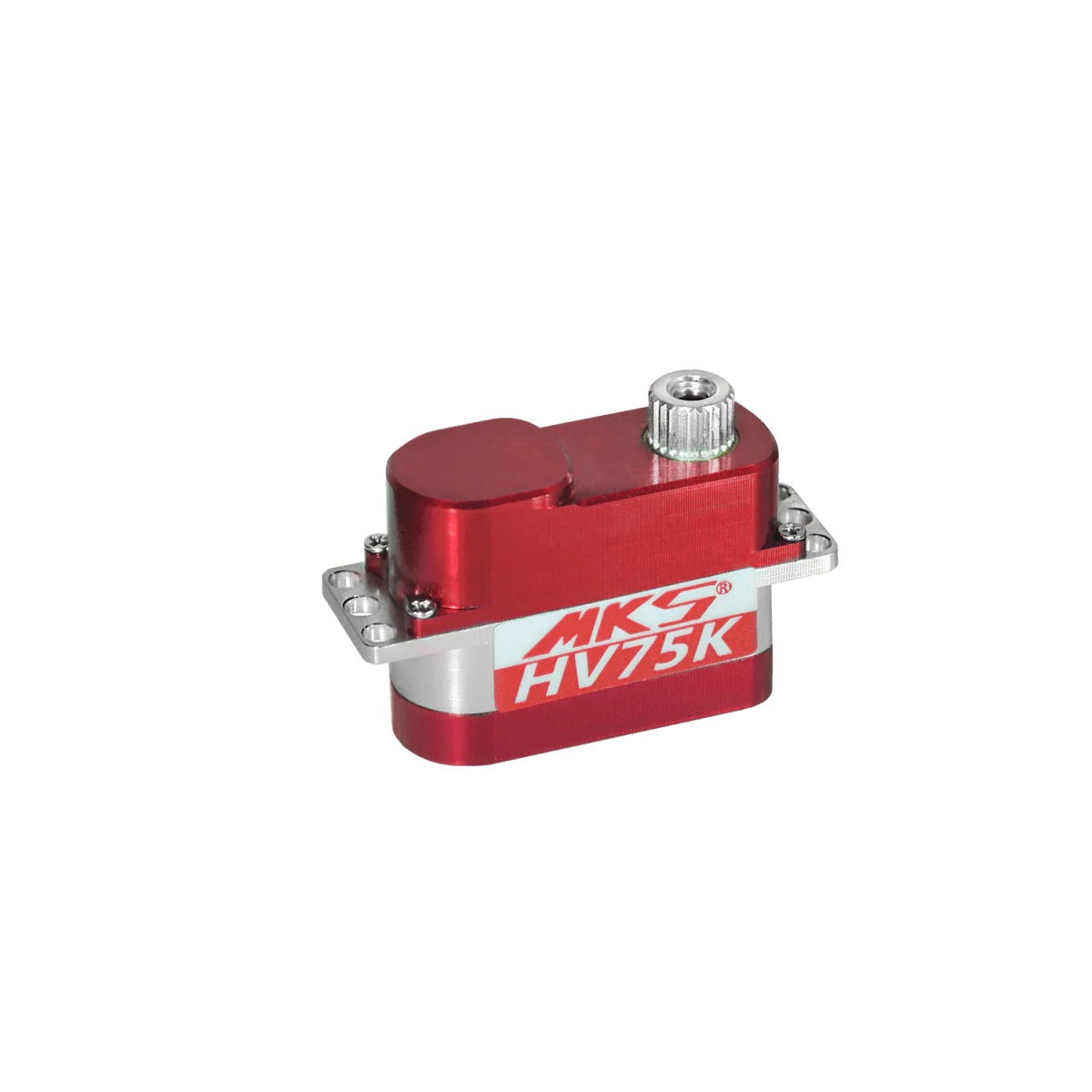

MKS  HV75K / HV75K-N

For DLG, HLG, F3K

No. S0022007





  Torque (3.7V):  1.4 kg-cm / 19.4 oz-in

  Torque (6.0V):  2.3 kg-cm / 31.9 oz-in

 Torque (7.4V):  2.8 kg-cm / 38.9 oz-in

 Torque (8.2V):  3.3 kg-cm / 45.8 oz-in

 Speed:    0.21s (3.7V)  /  0.13s (6.0V)  / 0.10s (7.4V)  /  0.09s (8.2V)

 Weight:  7.5 g (+0.1 g)  /  0.26 oz (+0.003 oz)



Dimension:  23 x 9 x 16.7 mm



NOTE:

1. Since the structure of HV75K is very high-precision.
2. This servo is not suggested to turn the output by hand directly.
3. Avoid to hit acutely the plane when landing it.
4. Avoid to pull the wire strongly.
5. Above behaviors maybe cause broken for interior parts.



HV75K-N (No Mounting Tab version)
