PowerBox iESC 160.HV

PowerBox  iESC 160.HV

The iESC series is the latest generation of controllers for brushless motors with a 32-bit processor. Telemetry and adjustability from the transmitter are standard features.

Features

  •  High-performance brushless controller with 32-bit technology
  •  The latest MosFet generation for less power loss and maximum
     reliability
  •  Telemetry for PowerBox, Jeti, and Futaba remote controls
  •  Fixed-wing and Heli mode
  •  The direction of rotation, timing, battery type, freewheel, starting current, and other
     parameters adjustable
  •  Adjustable control parameters in Heli mode
  •  Adjustable parameters directly on the transmitter for PowerBox and Jeti
  •  Parameters adjustable via LCD programming device for all systems
  •  Integrated electronic anti-flash circuit
  •  HV Opto version
  •  Self-test when switching on checks engine, throttle position, and voltage
  •  Optimal cooling through sophisticated housing design

Technical data

Operating voltage 6s - 14s
Current carrying capacity 160A / 180A continuous/peak
Signal input PWM
Supported remote control systems PowerBox, Jeti, Futaba, and others without telemetry
Supported telemetry systems P²-BUS, EX-BUS, S.BUS2
Dimensions 97x51x34mm
Weight 199g
Temperature range -20°C to +85°C

What it's in the box

• 1x iESC 160.HV
• User manual in German and English







Product Description

The iESC is based on the latest generation of controllers for brushless motors with a 32-bit processor and advanced functions such as telemetry and adjustability directly from the transmitter. The powerful microprocessor ensures smooth motor operation for brushless motors with up to 40 poles.


Braking force, motor timing, direction of rotation, gear ratio, freewheel, heli mode, and much more can be set directly via the PowerBox or Jeti transmitter. Setting boxes or jumper cards are now a thing of the past.

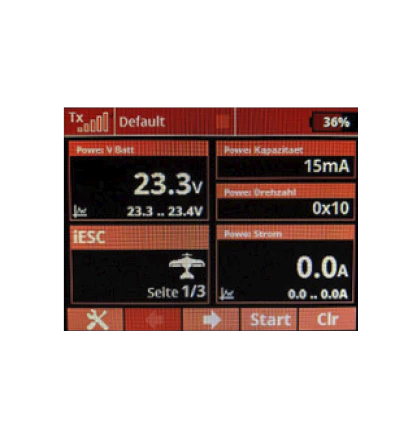

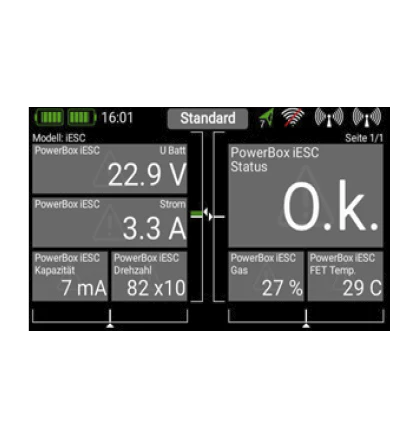

The iESC provides extensive telemetry data for PowerBox, Jeti, and Futaba transmitters, such as battery voltage, current, consumed capacity, speed, and the temperature of the controller.

The designation HV stands for high voltage, the iESC HV can handle up to 14s batteries and is designed as an opto version.


Downloads

PowerBox iESC 160.HV
operation manual
PowerBox iESC 160.HV (PDF)
Show more language variants

Test reports

Test report "PowerBox iESC" Jet International 4+5/2024
Test report "PowerBox iESC" Jet International 4+5/2024
Print version (PDF)


$115.80

Original: $386.00

-70%
PowerBox iESC 160.HV—

$386.00

$115.80
