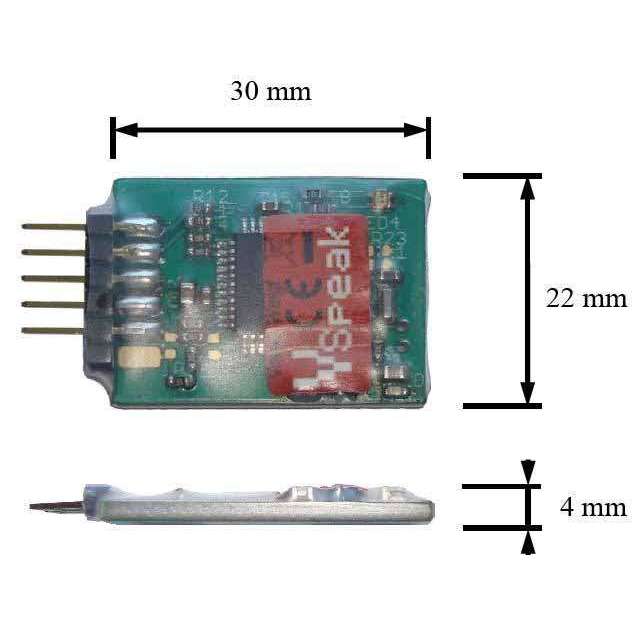

VSPEAK MODELL ECU CONVERTER / TELEMETRY for KINGTECH

The VSpeak ECU Converter for Kingtech is plugged into the KingTech ECU at the port labeled "GSU" using the supplied connection cable.
The ECU converter can be operated in parallel with the KingTech GSU (LCD touch screen) by means of a V cable.

The ECU data can be transmitted by the ECU Converter over the telemetry channel to the radio

The ECU Converter calculates the fuel consumption and also transmits it to the respective transmitter of the model pilot

The VSpeak ECU Converter is compatible with the following remote control systems:

• Jeti Duplex EX  A detailed test report is published in the JET POWER 2018/6.
• Multiplex MLink (MSB)
• PowerBox Core P²-Bus
• Graupner HoTT
• Futaba
• FrSky S.Port
• JR PROPO
• Spektrum X-Bus / SRXL2

The respective remote control system can be set using the KingTech GSU. Individual parameters can also be set.

Detailed information about VSpeak ECU Converter KingTech can be found in the detailed manual.
