XICOY X52PROTurbojet
XICOY X52 PRO Turbojet
Power output adjustable from 25N to 52N
The smallest engine in its class!
Note: This item doesn't qualify for a *FREE SHIPPING PROMOTION. There is a FLAT RATE SHIPPING CHARGE ($60) that applies to all turbine engines. Please select the correct option during the checkout.
We love our customers. Well…..most of them. Recently, we have seen an unprecedented increase in individuals purchasing engines who seem to think they can use them a bit, return them, and then file a chargeback with their bank, credit card company, or PayPal. While we typically win these disputes, the amount of time wasted is unsustainable. So…going forward.
All Jet Central, Xicoy, and Kolm engine sales are FINAL. AeroPanda will not accept any returns or requests for refunds on these engines for any reason. By purchasing any of these engines, the buyer agrees and accepts that he/she/they will follow the manufacturer's warranty process if they experience any issue with the engine. In plain English. You buy it. You own it! Please do not place the order if you do not understand the above statements.
DESCRIPTION
The engine is offered in PRO version, can get additional Light versions.
| Specifications |
|---|
|
|
|
|---|---|
| Fuel: | Kerosene only + 4% oil. Fuels containing Biodiesel not allowed. |
| Telemetry: | Jeti, FrSky, Hott, PowerBox, and Futaba are included, integrated in the ProHub. An optional (not included) module allows MPX and JR. |
| Starter motor: | High speed brush-less |
| Fuel pump: | Digitally controlled brushless pump |
| Thrust: | Continuously adjustable from 25 to 52N (11,7 Lbf) |
| Other: | Built-in sensors for ambient temperature and atmospheric pressure to automatically adjust the engine performance |
| Rpm Range: | 60,000 ... 225.000 RPM |
| Size: | 59.8mm diameter, 158mm long |

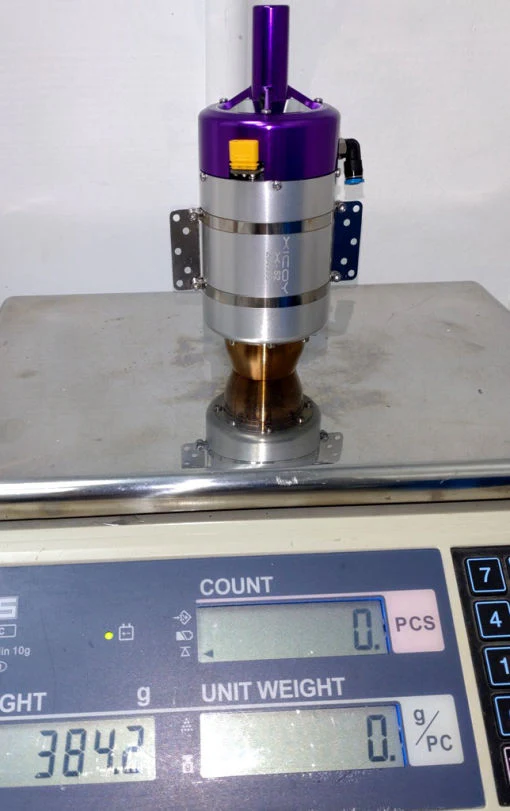

| Weight: | 385g ( 0.85 lb) engine only, 463g ( 1,02 lb) total installed weight except battery |
| Recommended battery: | 2s Lipo/2200mAh reccomended. (3s Life compatible, not recommended). Battery not included |
| Service interval: | 25 hours |
| Fuel consumption: | 160g/minute at 52N. (205ml/min) |
| Idle Thrust: | 1.8N (0,17Kg/0,4Lbf) |
Warranty: 2 years or 25h, whichever comes first. The warranty includes parts & labor but does not include shipments back to the factory in Spain and return.
More info and instructions manual here: www.xicoyturbines.com
FOD Filter included
Especially designed and developed for the X45 now X52
Digital Brushless pump
The X45 uses a purpose-made Brushless fuel pump. Integral electronics assure full digital control and operation with a guaranteed longer life.
Weight 28g.
Easy installation
Featuring an in-built mounting flange and supplied hardware.
Easy installation
The X52 has only one fuel tube and one 3-wire Bus electrical connection.
Downloads
X52 Outline Drawing (PDF)
User Manual English
Downloads
X52 3D Drawing (STL)
X52 Outline Drawing (DXF)
Original: $2,550.00
-70%$2,550.00
$765.00Product Information
